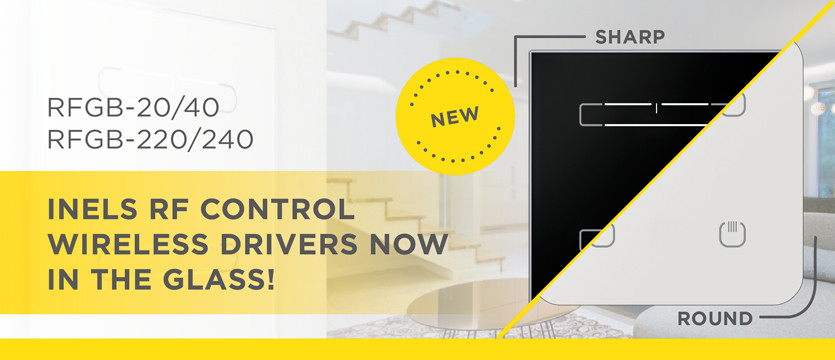

INELS RF Control wireless drivers now in the glass!

Additional information INELS RF Control wireless drivers now in the glass! photo

The wireless (RF) range has long been dominated by plastic switches with frames made of materials such as plastic, wood, metal or granite. While these switches are still popular they not always suitable for modern, clean interiors and most importantly - it is not always possible to intervene in finished walls so that we can elevate the appearance of our already built homes to a more elegant space. As a result, the glass switch with the RFGB-20/40 SHARP (with sharp edges) and RFGB-220 / 240 ROUND (with rounded edges) markers were added to the switch family in 2020.

They are a luxurious alternative to plastic push-button RFWB. In a glass design with a thickness of only 8 mm, these will stand out in any interior. They are available in 2 and 4 button versions, in white and black glass. Capacitive pads are operated by touch, distinguishing between short and long presses. Button illumination during packet sending is realized by red LED. Actuators can adhere anywhere with double-sided tape or screwed onto the surface or installation box with a screw spacing of 60 mm via an auxiliary bracket. Power is provided by replaceable 2x CR 2032 with a lifetime of up to 2 years - depending on frequency of use.


  Type eshop 3D  Code
RFGB-20/B to eshop 3D 7679
RFGB-20/W to eshop   7678
RFGB-40/B to eshop 3D 7681
RFGB-40/W to eshop   7680
RFGB-220/B to eshop 3D 7684
RFGB-220/W to eshop   7683
RFGB-240/B to eshop 3D 7686
RFGB-240/W to eshop   7685

RFGB-20 a RFGB-40 Glass touch controllers

  • The glass touch controller is a design RF (wireless) Control unit and is
  • available in elegant black and white variants.
  • Only 8 mm thick.
  • RFGB-20: 2 capacitive buttons allows to control 2 devices.
  • RFGB-40: 4 capacitive buttons allows to control 4 devices.
  • When pressing the button, it sends a set signal (ON/OFF, dimming,
  • time switching OFF / ON, blinds up/down). Sending a command is indicated
  • by a red LED.
  • Option of setting light scenes, where with a single press, you can control
  • units of iNELS RF Control.
  • The rear base allows to be attached to installation using screws, double-
  • sided tape or keeping controller on the table.
  • Battery power supply (2x 3 V/CR2032 - included in the supply) with battery
  • life of around 2 years based on frequency of use. Range up to 200 m (in open space), if the signal is insuffi cient between
  • the controller and unit, use the signal repeater RFRP-20 or protocol
  • component RFIO2 that support this feature.
  • Communication frequency with bidirectional protocol RFIO.
  • SHARP controllers
  • Dimensions: 94 x 94 mm


RFGB-220 a RFGB-240 Glass touch controllers

  • Specifications same as RFGB-20 and RFGB-40
  • ROUND controllers
  • Dimensions: 100 x 100 mm

Release date : June 2020

Downloads

Video

Date of publication: 09. 04. 2020
