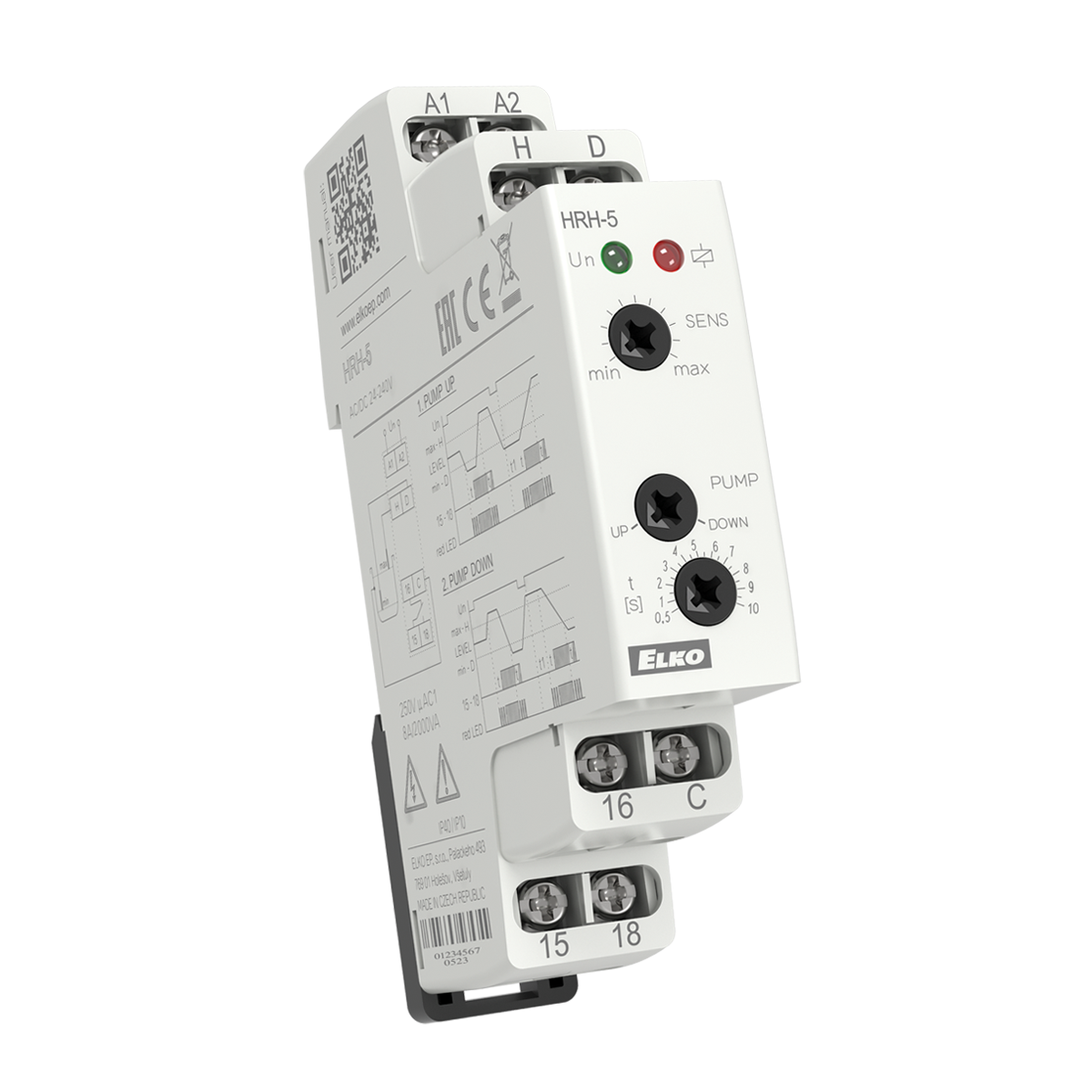

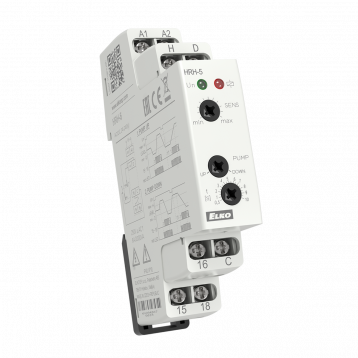

Level switch HRH-5

Relay is designed for monitoring levels in wells, basins, reservoirs, tanks...

DESCRIPTION

  • In one device you can choose the following configurations:
    - one-level switch of conductive liquids (by connecting H and D)
    - two-level switch of conductive liquids.
  • One-state device monitors one level, two-state device monitors two levels (switches on one level and switches off on another level).
  • Choice of function PUMP UP, PUMP DOWN.
  • Adjustable time delay on the output (0.5 - 10s).
  • Sensitivity adjustable by a potentiometer (5 - 100 kΩ).
  • Measuring frequency 10 Hz prevents polarization of liquid and raising oxidation of measuring probes.
  • Galvanically separated supply voltage UNI 24.. 240 V AC/DC.
  • Output contact 1x changeover/SPDT 8A/250V AC1.
  • 1-MODULE, mounting onto DIN rail.

TECHNICAL PARAMETERS

  • Voltage range: 24.. 240 V AC / DC (AC 50 - 60 Hz)
  • Input: max. 2 VA / 1.5 W
  • Number of contacts: 1x changeover / SPDT (AgNi / Silver Alloy)
  • Mounting: DIN rail EN 60715
  • Protection degree: IP40 from font panel / IP10 terminals
  • Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
  • Weight: 73 g (2.6 oz.)
